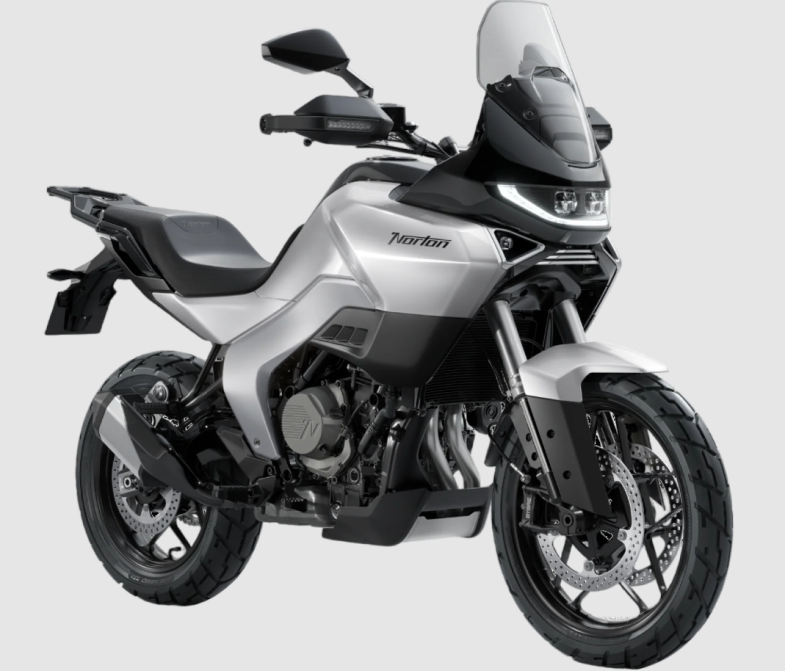

Norton Atlas Middleweight Adventure Bike: Full Specs Revealed

Published: Jun 12 2026, 05:45 AM EDT

Norton has officially detailed the new Atlas middleweight adventure motorcycle for 2026, confirming its 585cc parallel-twin engine, full chassis hardware, and a comprehensive electronics package aimed at the competitive mid-capacity ADV segment.

At the core of the 2026 Norton Atlas is a 585 cc liquid-cooled parallel-twin with a 270-degree crankshaft, producing 69 bhp at 9,300 rpm and 57.5–57.7 Nm of peak torque at 7,300 rpm.

The engine uses multi-point sequential fuel injection and a ride-by-wire throttle system to manage power delivery, according to Gear Patrol.

Drive is sent to the rear wheel through a six-speed gearbox paired with a bi-directional quickshifter and a cable-operated assist-and-slipper wet clutch for smoother, more controlled shifts.

Norton's New Atlas Adventure Bike

The Atlas is built around a steel trellis frame combined with a cast aluminium swingarm, with the engine contributing to the overall structural rigidity.

Suspension components are supplied by KYB, with 43 mm upside-down front forks providing 180 mm of wheel travel and full adjustability, matched to a rear KYB monoshock offering 180 mm of travel, adjustable damping, and hydraulic preload.

Norton quotes a wet weight of 188 kg, placing the model squarely in the middleweight adventure class. Braking hardware on the Atlas consists of twin 310 mm semi-floating discs at the front with radially mounted Bybre calipers and a 270 mm rear disc.

The bike runs on a 19-inch front wheel and 17-inch rear wheel, available in cast alloy or spoked steel configurations, shod with Eurogrip Explo R Plus tyres designed for mixed on-road and light off-road use, Cycle World reported.

Fuel capacity is listed at 15.4 litres, while ground clearance stands at 220 mm and seat height at 845 mm, targeting riders who intend to combine touring and rough-road riding.

Electronics are anchored by a Bosch 10.3MB six-axis IMU that feeds data to a wide range of rider aids. The package includes ABS, traction control, drag torque control, dynamic cruise control, wheelie control, rear lift mitigation, and rear slide control.

Riders can choose from five ride modes: Urban, Rain, Sport, Tour, and Enduro, tailoring throttle response and intervention levels to different conditions.

What You Can Expect

The Atlas also features an 8-inch TFT touchscreen with 720p resolution, Bluetooth and Wi-Fi connectivity, and integration with the Norton Rider app.

The system supports music and call management, turn-by-turn navigation, GoPro control, ride telemetry, and over-the-air software and firmware updates. Keyless ignition is standard, with electronic locking for the steering, seat, and fuel filler cap, as per ADV Pulse.

Lighting is handled by LED twin-projector headlamps with dynamic intensity adjustment and signature daytime running lights, plus integrated LED indicators front and rear.

Ergonomic equipment includes adjustable brake and clutch levers, aluminium footpegs with removable rubber inserts, and a single-piece seat designed for both rider and pillion comfort.

Norton cites fuel efficiency of about 23 km/l for the Atlas, rounding out its positioning as a fully featured 2026 middleweight adventure model.
